Polygon Hose

GS Polyflex or Polygon hose is fully interlocked hose furnished without packing. Its most important feature is its polygon shape (typically 16 to 20 sides) instead of smooth construction. This helps it to maintain the dimensions closely.

It offers (limited) pressure tightness without the need of any packing. Thereby its serviceable temperature is as high as 600 C. At the same time fully interlocked construction imparts great crush resistance and high tensile strength.

Size Range :N.B.1-1/2" to 8"

End-Fittings

Any type of standard or specialized fittings can be adapted to suit this hose. The fittings can be attached by welding, brazing or using epoxy adhesives.

Specifications

The GS UltraFlex is manufactured in Galvanized Steel and Stainless Steel as a standard.

Applications

The Polygon Hose has moderate flexibility, (limited) pressure tightness, excellent crush resistance and good tensile strength. Thus it is ideally suited for discharge of Exhaust and high temperature gases at atmospheric pressure. It is very durable in chemically corrosive environments. Maintenance of close dimension makes it useful as ideal protective casing. It used for the protection of non-metallic hoses and as additional armour to corrugated hose.

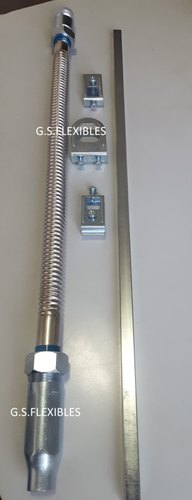

Fire Sprinkler Flexible Drop Hose

We are the original manufacturers of Fire Sprinkler Flexible Drop Hose in India.
It is used for fire fighting in mostly false ceilings in offices, warehouse, commercial buildings including Malls, Hotels and Hospitals.
We use high quality raw materials in production e.g. Corrossion Resistant ss304 for tube, Virgin Grade Silicone Rubber for sealing gaskets, and nylon66 for plastics.
Thereby both service life and performance such as working pressure and temperature are increased manifold better than the next best available options.

Additional Information

  • Production Capacity: 100000 per Month
  • Delivery Time: 1 Week
  • Packaging Details: 20 Sets in Very Heavy Duty Carton Box

Specifications

Minimum Order Quantity500 Set
Working Pressure200 psi (14 kg/cm2)
Burst Pressure300 psi (21 Kg /cm2)
Max. Ambient Temp.225 F ( 107 Deg Cel)
Length700, 1000 , 1200 , 1500 , 1800 mm
Inlet Connection1" BSPT
Sprinkler Connection1/2" NPT
Hose MaterialStainless Steel Grade SS304
